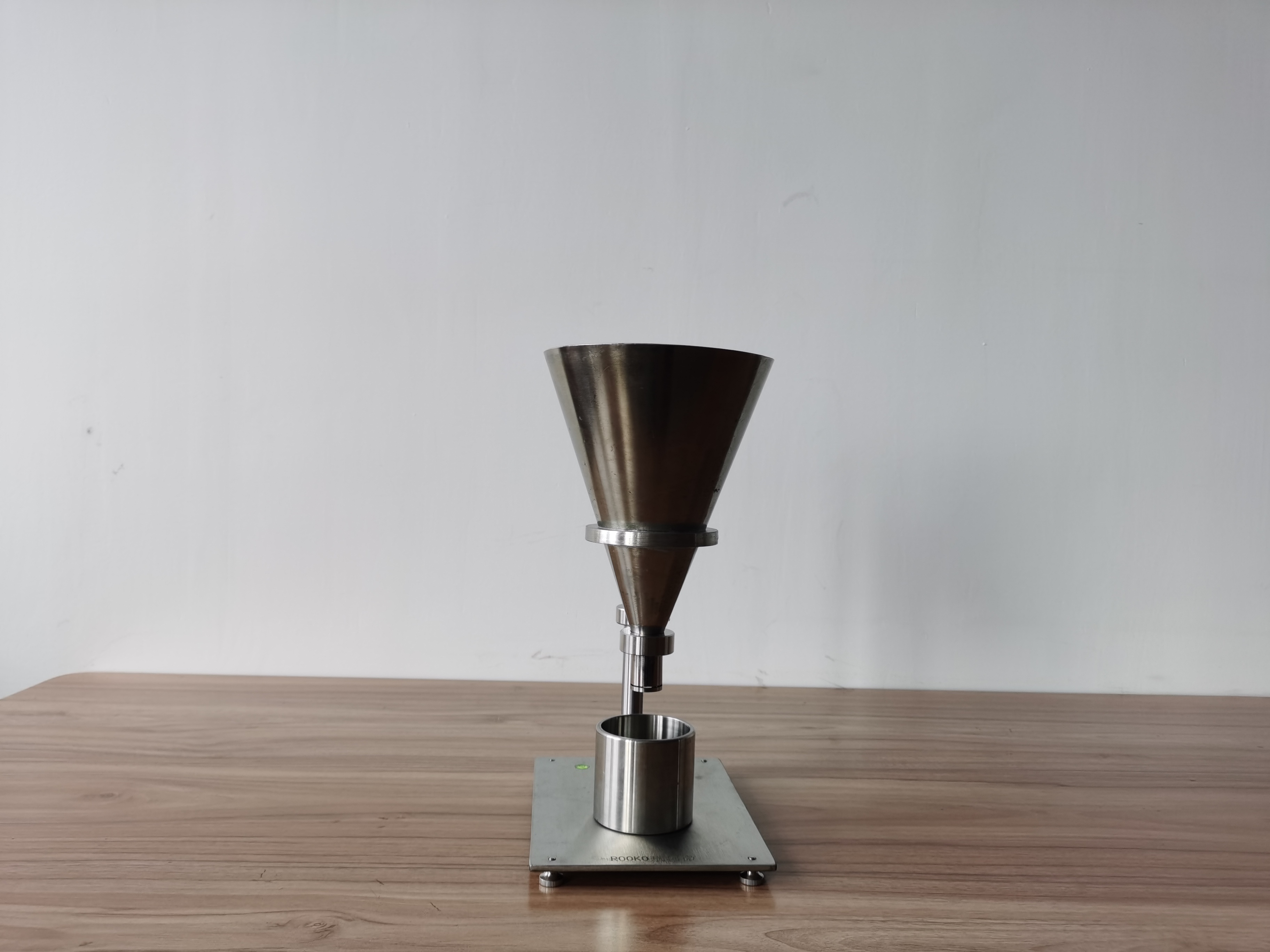

FT-106普通磨料堆積密度測定儀
發布時間： 2026-04-14 10:38:31 點擊： 3147
FT-106普通磨料堆積密度測定儀
FT-106 Common abrasive bulk density tester
一． 參照標準standard：
ISO9136：1989《粗磨粒 堆積密度的測定》和行業標準JB／T7984.2-1999《普通磨料 粗磨粒堆積密度的測定》的相關要求；GB/T20316.1-2009堆積密度測定儀要求；適用于檢測制造固結磨具和涂附磨具的粗顆粒普通磨料的堆積密度
According to the international standard ISO9136:1989 "the determination of coarse grinding grain bulk density” and industry standards JB/T7984.2-1999 the relevant technical requirements of ordinary abrasive coarse grinding grain of bulk density determination, at the same time meet the requirements of GB/T20316.1-2009 bulk density meter;It is suitable to test the packing density of coarse grain grinding materials, which can be used in the manufacture of consolidation grinding tools and coated abrasive tools.
二．參數資料Technical Parameters
1.1漏斗材質：不銹鋼；
Funnel material: stainless steel.
1.2漏斗尺寸：高度240mm；頂部直徑160mm；出口直徑：(20±0.5)mm；
漏斗底部與測量筒上口的距離：（76±1）mm 測量筒尺寸：內徑64mm； 凈高度62mm 測量筒容積：.(200±0.5) cm3 測量誤差：≤±0.02g/cm3
Funnel dimensions: height 240mm, top
diameter 160mm, outlet diameter: (20±0.5)mm, the distance between the bottom of the funnel and the top of
the measuring cylinder: （76±1）mm, measuring cylinder dimensions:
inner diameter 64mm, net height: 62mm, measuring cylinder volume: (200±0.5) cm3, measurement error：≤±0.02g/cm3.
2.1測量誤差：≤±0.02g／cm3。Measurement
error：≤±0.02g/cm3.
2.2測量筒容積：200±0.5cm3。Measuring cylinder volume: (200±0.5) cm3.
2.3外形尺寸：230mm（長）×250mm（寬）×425mm（高）
Dimensions: 230mm (L) * 250mm (W) * 425mm (H)
FT-106普通磨料堆積密度測定儀視頻文件鏈接：
https://v.youku.com/v_show/id_XMTMyMTM1MTM2MA==.html?spm=a2hzp.8253869.0.0
